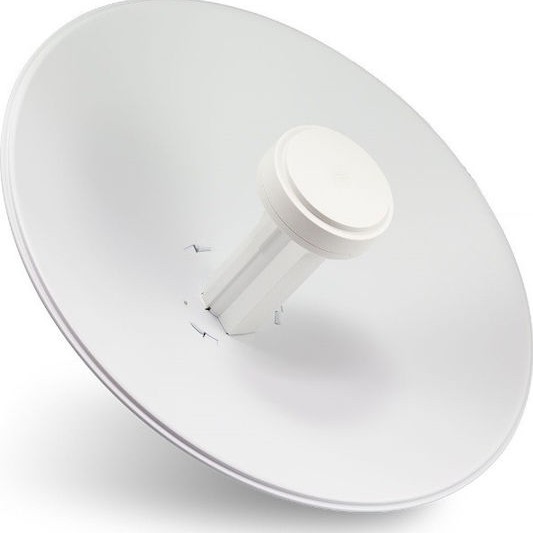

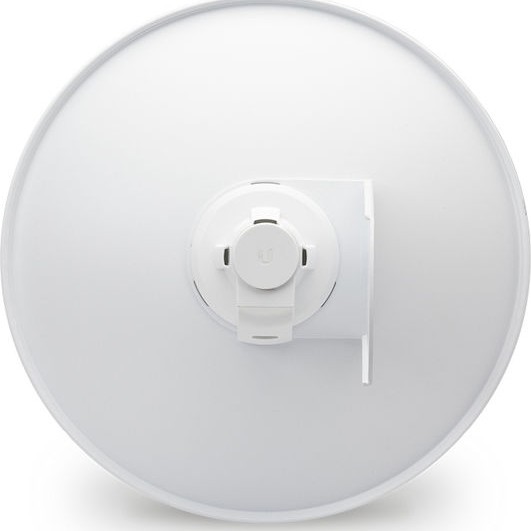

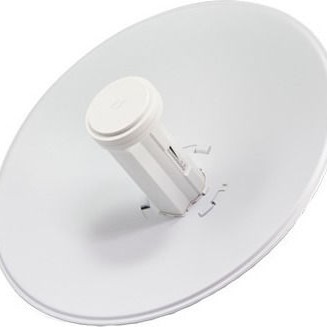

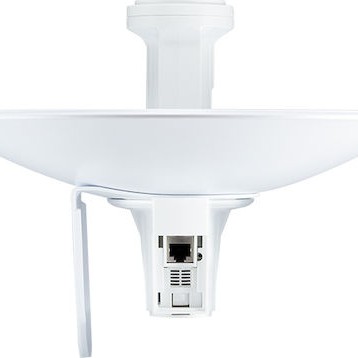

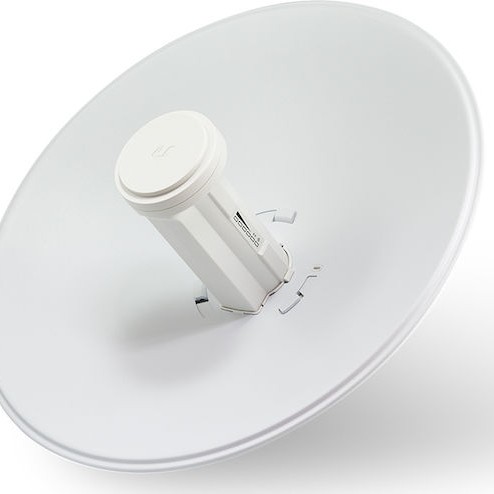

Ubiquiti Powerbeam M5-300 Εξωτερική Κεραία WiFi Παραβολική 22dBi με σύνδεση Ethernet

UBIQUITI Access point PBE-M5-300, outdoor, 5GHz, 2x22dBi, AirMAX

Τεχνικά Χαρακτηριστικά:

• Power Supply: 24V, 0.5A PoE
• Max. Power Consumption: 6W
• Gain: 22 dBi
• Networking Interface: (1) 10/100 Ethernet Port
• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• LEDs: 1x Power, 1x LAN, 4x WLAN
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Max. VSWR: 1.5:1
• Channel Sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 145.2 N @ 120 km/h
• Wind Survivability: 120 km/h
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -40 to 70° C
• Operating Humidity: 5 to 95% Non-Condensing
• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Dimensions: 325 x 325 x 256 mm
• Weight: 1.203 kg

Περιεχόμενα συσκευασίας:

• Dish Reflector
• Antenna feed
• Rear housing
• Dish bracket
• Pole Clamp
• U-Bolt
• 2x Flange nuts M6
• 2x Washers M6
• PoE adapter (24V, 0.5A) with mounting bracket
• Power cord
• Quick start guide
